Products High Voltage DC Power Supplies

High voltage power supply / High voltage power amplifier
(mainly module type)

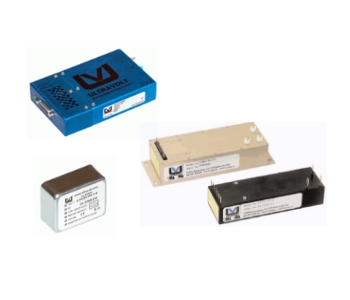

ULTRAVOLT:(Advanced Energy)

High voltage power supply / High voltage power amplifier (mainly module type)
ULTRAVOLT’s versatile, compact and efficient high voltage power supply with high-precision and high stability has developed high reliability by adopting MIL approved design and parts.
Output voltage ranges from 62V to 40kV, output current from 100mW to250W.
RoHS compliant / UL recognized / CE marked.
Type Output Voltage Maximum Power Standard model
Power supply module 40kV 250W 800~
High voltage rack mount power supply 40kV 1kW 3 series
High voltage power amplifier ±20kV 2W 14
High voltage high power DC power supply

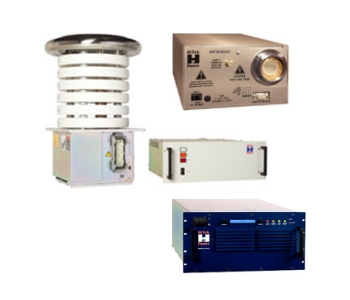

HiTek Power

High voltage high power DC power supply
Having techniques to design high voltage power supplies and analogue electronics and extensive knowledge of applications, such as arc prevention, HiTek Power provides standard models from 100V to 500kV, 1W to 100kW or higher as well as custom OEM products.
RoHS compliant, CE marked and SEMI approved.
Type Output Voltage Maximum Power Standard model
X-ray generating HV power supply 90kV 2kW 12
High accuracy HV power supply module 8kV 10W 31
Analyzer HV power supply module ±20kV 85W 30
Rack mount large volume HV power supply 500kV 20kW 94
Multipurpose HV power supply module 80kV 100W 11
High voltage capacitor charging power supply

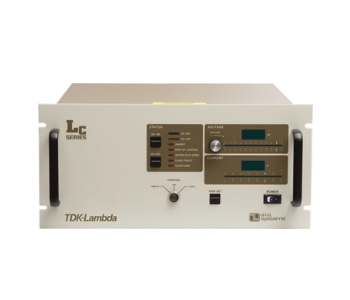

ALE

High voltage capacitor charging power supply
ALE capacitor charging power supply is operative as a constant current source that charges high voltage capacitors and pulse forming network (PENs) and also as a constant voltage source.
Patented Phase Shifted Parallel Resonant Inverter Technology is applied in this series to maintain extremely low pulse to pulse voltage variations with small load capacitor as required by excimer laser.
UL2601.1 , CSA C22.1 , IEC601-1 , EN60601.1 compliant.
Type Output Voltage Maximum Power Models
Capacitor charging power supply (for DC) 50kV 37.5kJ/s(50kW) 960
Charging power supply system 50kV 1MW 1,040
High precision / high stability DC power supply

FuG Elektronik GmbH

High precision / high stability DC power supply
Specialized DC power supply manufacturer FuG Elektronik GmbH delivers a variety of 10E-5 class high stability power supplies from low to high voltage, 4W to 100kW, that comply with various industrial needs.
Custom designs for electron / ion accelerator and multiple outputs are available.
Type Output Voltage Output Current Maximum Power Standard model
HV power supply 200kV 75A 75kW 192
Capacitor charging power supply 65kV 20A 20kJ/s 68
Linear / Bipolar power supply 20kV 120A 1.4kW 97
Autoranging power supply 3kV 180A 9kW 28
