Products Low Voltage DC Power Supplies

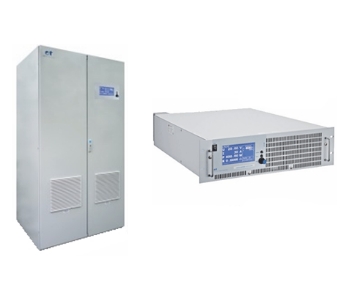

Low-voltage high-power DC power supply: Unidirectional/Bidirectional (Source/Sink)

ET System

Low-voltage high-power DC power supply: Unidirectional/Bidirectional (Source/Sink)
Variable output CP/CV/CC DC power supply provides high performance and high power.
Single unit output range is from 15V to1,500V, 2A to 750A.
Master/Slave operation is applicable for higher power up to 210kW.
Type Output Voltage Output Current Maximum Power
(in parallel )		 Model
Low voltage power supply1 1,500V 3,500A 210kW 154～
Bidirectional power supply 2 1,500V 800A 2MW
Fast response: <1~3ms, controlled from remote LAN terminal or PC
  • 1 Custom designed output voltage/current available within the allowable range.
  • 2 A variety of AC powers and electronic loads available.

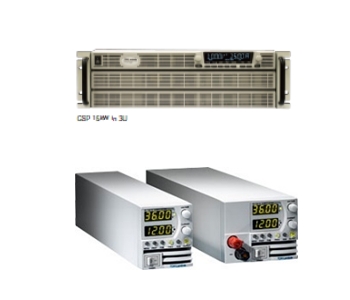

Low-voltage high-power DC power supply

TDK Lambda

Low-voltage high-power DC power supply
Low voltage, high power DC power supply with variable output CP/CV/CC for compact desktop power supply and 19” rack mount power supply are RoHS compliant / UL60950-1, EN60950-1 certified / CE marking. Worldwide product support available. Lineup includes DC power supplies with single unit output range from 200W to 15kW, output voltage up to 600V, and output current up to1,500A.
Type Output Voltage Output Current Maximum Power Standard model
High power rack mount power supply 1,500V 1,000A 15kW 476
Desktop power supply 650V 132A 800W 51
High precision DC power supply

FuG Elektronik GmbH

High precision DC power supply
Specialized DC power supply manufacturer FuG Elektronik GmbH delivers a wide variety of 10E-5 class high stability power supplies from low to high voltage, 4W to 100kW, that cover the various industrial needs.
Custom tailoring for applications such as electron/ ion accelerator and mass spectrometry and for multiple outputs are available.
Type Output Voltage Output Current Maximum Power Standard model
Low / Medium voltage
High powered power supply		 2kV 4,000A 100kW 217
Linear / Bipolar power supply 20kV 120A 1.4kW 97
Autoranging power supply 3kV 180A 9kW 28
